Using Transfer to DXF feature

Transfer To DXF

This program tool allow to visually program path for roughing pocket.

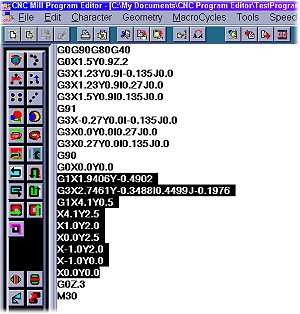

To do so first write code for finish contour of the pocket, Select this part of the program (this code may only have G1,G2 and G3) First block must have G code included.

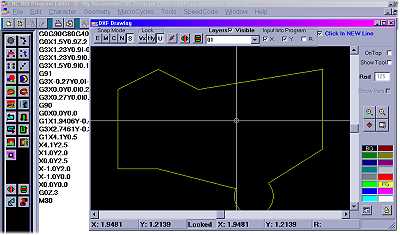

Selecting Text will make enable speed button and editor menu 'Transfer to DXF Window" use one of this options to Open DXF Window

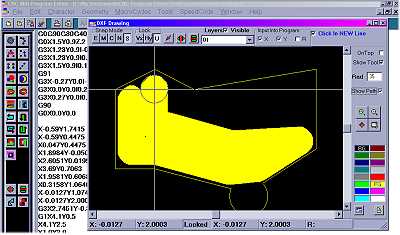

Insert Editor cursor in desired position, switch back to DXF window. Check Show Tool box on right top side of DXF window Insert size of Tool being use and check Show Path box also You may check on top box (path is not part of drawing and will be not redrawn if DXF Window will be moved beyond screen or will be moved to back behind Editor window) Click redraw button to clear any previous click position You might made before. Use S snap mode

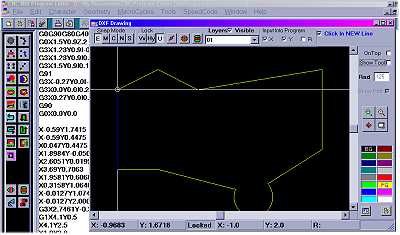

If needed use Lock mode to make movements vertical or horizontal.

Each click on drawing will insert current Locked position into Editor at cursor position and draw tool path to this point.

To clear drawn path press redraw button.

For more information about DXF window use Help in Editor menu or press F1 when DXF window is active.
